Customized Perforated Aluminum Sheet 3003 H14 Round Hole Perforated Sheet
No. :
:
:


Customized Perforated Aluminum Sheet 3003 H14 Round Hole Perforated Sheet

Round Hole Perforated Aluminum Plate 3003 H14 Aluminum Sheet With custom size Holes

Perforated aluminum can be used in flooring, wall panels, decoration, metal partitions, security guarding and many other applications.

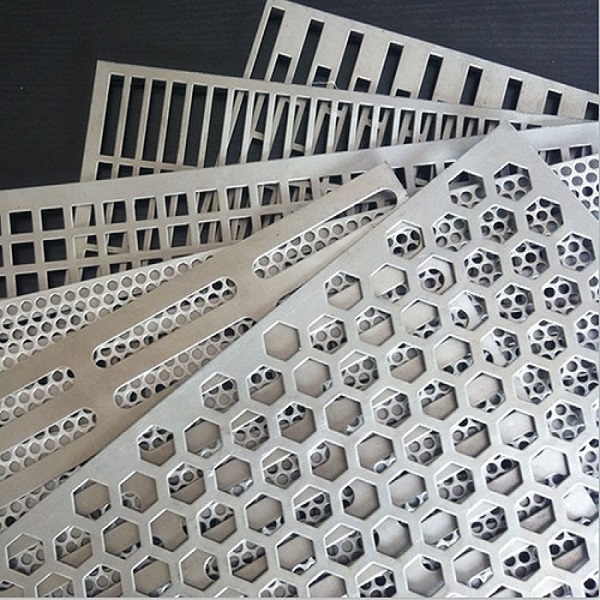

perforated aluminum plate is a sheet product that has been punched with a wide variety of hole sizes and patterns providing an aesthetic appeal. Perforated Aluminum Sheet offers savings in weight, passage of light, liquid, sound and air, while providing a decorative or ornamental effect

Perforated aluminum sheet metal is a popular option, both for functional and aesthetic reasons. Aluminum is very versatile. Compared with many other metals, it is naturally lightweight and easy to work with. It is highly resistant to corrosion, making it ideal for indoor and outdoor applications

Features and Uses of Perforated aluminum sheet

Perforated aluminum partitions can be used as physical barriers for automated machinery and other facilities. This is a simple but effective way to protect employees from the dangers presented by this equipment. Panels mounted along the perimeter of a work cell provide "fool-proof protection" from the hazardous area.

Perforated metal complements any structure and adds a visually stunning element to interiors and exteriors alike. Perforated aluminum is an excellent option for designs of all types. Perforated aluminum sheet metal is a popular option, both for functional and aesthetic reasons, and the uses for perforated aluminum are virtually unlimited

1) Temper: H18, H16, H14, H26, H24, O.
2) Alloy: 1050, 1060, 1100, 1145, 1200, 3003, 3004, 3A21, 5052, 5083, 8011
3) Thickness: 0.2-1.2mm, Width: 90-1520mm, Core ID: 75, 150, 500, Pipe OD:300-1800mm
4) Package: Export standard, wooden packing or according to customer's requirement.
5) MOQ: 5 tons per size.
6) Leadtime: Within 35 days after confirm order
7) Payment: T/T or irrevocable L/C at sight.


ROUND HOLES STAGGERED PATTERN
HOLE CENTERS GAUGE / PLATE THICK. OPEN AREA
.020" RD .045" Stag 26 18%
1/32" RD 1/16" Stag 22 23%
3/64" RD 5/64" Stag 24 33%
3/64" RD 3/32" Stag 22 thru 18 23%
1/16" RD 3/32"Stag 22 thru 16 40%
1/16" RD 7/64" Stag 20 thru 16 30%
1/16" RD 1/8" Stag 26 thru 16 23%
5/64" RD 1/8" Stag 22 thru 14 35%
3/32" RD 5/32" Stag 24 thru 14 33%
3/32" RD 3/16" Stag 24 23%
.117 RD 5/32" Stag 18 51%
1/8" RD 3/16" Stag 24 thru 11 40%
1/8" RD 7/32" Stag 14 thru 12 30%
1/8" RD 1/4" Stag 14, 13 23%
9/64" RD 3/16" Stag 18 51%
5/32" RD 3/16" Stag 22 thru 16 63%
5/32" RD 1/4" Stag 20 thru 10 35%
3/16" RD 7/32" Stag 22 thru 16 67%
3/16" RD 1/4" Stag 24 thru 12 51%
3/16" RD 5/16" Stag 10, 3/16" 33%
3/16" RD 3/8" Stag 14 thru 10 23%
1/4" RD 5/16" Stag 20 thru 16 58%
1/4" RD 3/8" Stag 26 thru 1/4" 40%
17/64" RD 5/16" Stag 20 66%
5/16"RD 7/16" Stag 20 thru 1/4" 46%
3/8" RD 9/16" Stag 20 thru 1/4" 40%
1/2" RD 11/16" Stag 20 thru 1/4" 48%
1/2" RD 3/4" Stag 16 40%
5/8" RD 7/8" Stag 10 thru 1/4" 46%
3/4" RD 1" Stag 16 thru 1/4" 51%
1" RD 1-3/8" Stag 10 thru 1/4" 48%
1-1/4" RD 1-5/8" Stag 1/4" 54%
1-1/2" RD 2" Stag 1/4" 51%
2" RD 2-1/2" Stag 1/4" 58%
2-1/2" RD 3" Stag 3/16" 63%
3" RD 3-1/2" Stag 3/16" 67%
4" RD 4-1/2" Stag 10 72%
Packing Detail wooden package , protective PE film , or according to client requirements
Loading Detail 1.The samples will be sent by Courier service
2.According to the product quantity and specification to arrange FCL or LCL,cooperate with many strong companies for many years to ensure the good service and suitable price.
3.Making good use of every space of the container, in order to minimize shipping cost and loading the goods in the most safety way.
